Lenght cm. 184
Span cm 194,7
Root profile NACA 2415
incidence +0,75°
Tip profile NACA 0018 incidence -1,20°
Take off weight Kg.
8,500
Wing area dmq. 54
Wing
load gr. 157 x dmq.

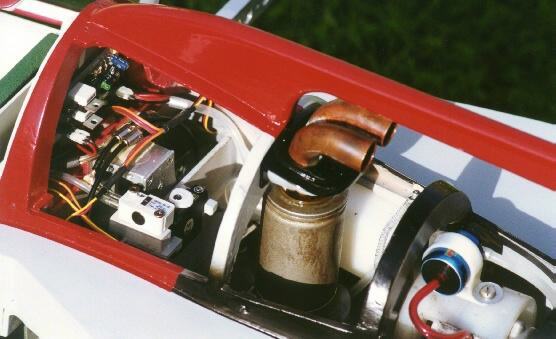

Electric engine:
Kontronik PYRO 700-45 LS
Regulator:
JIVE Pro 120 + HV

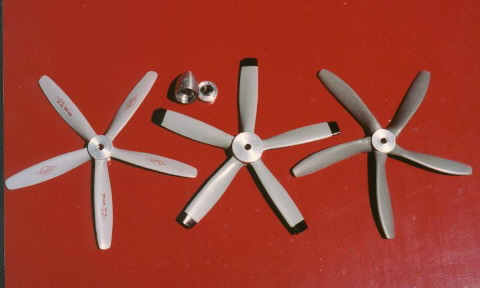

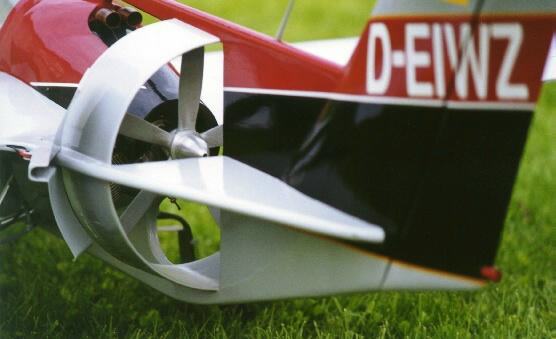

Five blade propeller with alluminiun shaft
Pushing propeller tested: 11x8

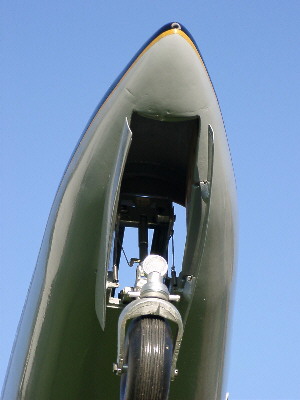

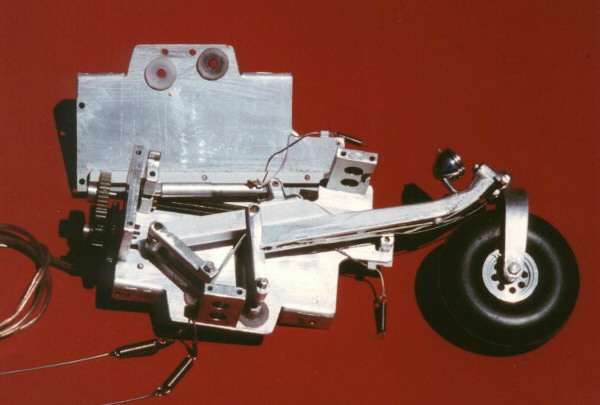

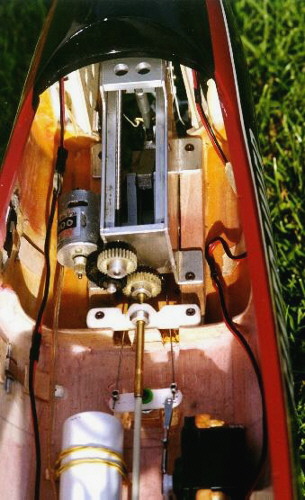

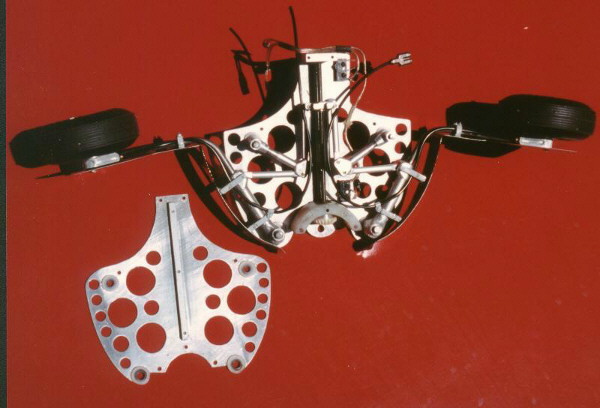

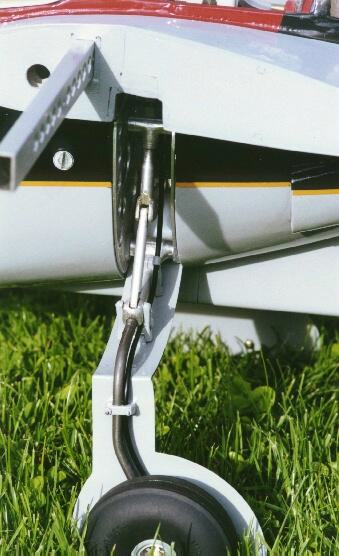

Landing gear powered by a Speed 400 motor
with a 4.8V battery pack

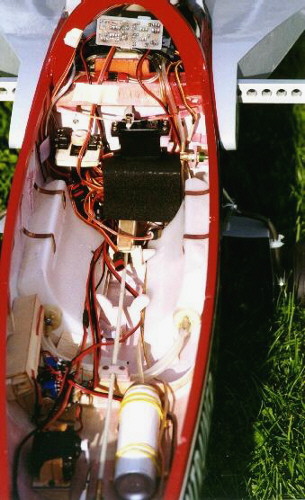

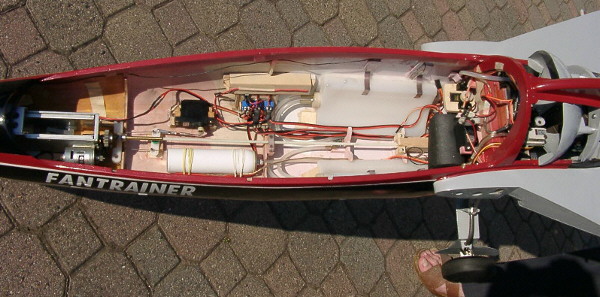

Total servos used: n. 13, using 8 R/c channels
Ailerons: 2 servos, Elevator: 2 servos, Retractable landing gear: 1
servo, Rudder with steering: 2 servos, Flaps: 2 servos, Throttle: 1
servo, speed brakes: 2
servos, wheel brakes: 1 servo
Built by: Piero RASTELLO
